Convert to LeRobot

Overview

LeRobot is Hugging Face’s open format and toolkit for robot-learning datasets. This guide walks through converting robot data you’ve ingested into Roboto into a LeRobot dataset, using the roboto-to-lerobot action from the Action Hub. It doesn’t matter what your logs were originally recorded as — once they’re ingested and their topics are queryable on Roboto, the action can convert them.

The action turns a collection of events into a single LeRobot dataset — one episode per event. A contract — a small YAML file you store in the invocation dataset, the dataset you run the action against — is the single source of truth for the conversion: it decides which topics become which camera, state, and action features, how each stream is aligned, and what transforms are applied. You author the contract once, and the action applies it identically to every event.

The action ships as two variants with an identical interface:

• roboto-to-lerobot-v3_0 writes the LeRobot 3.0 format. This is the recommended default.

• roboto-to-lerobot-v2_1 writes the LeRobot 2.1 format. Pick this one only when the tools you train with have not yet adopted LeRobot 3.0.

The walkthrough below uses the web UI. It’s a general overview of how the pieces fit together rather than a step-by-step you follow with identical data — your topics, contract, and IDs will be your own. For the complete contract schema — every field, message type, alignment method, and transform — see the Roboto to LeRobot Contract reference.

Prerequisites

• A Roboto account.

• One or more recordings ingested into a Roboto dataset, so their topics are queryable. Roboto ingests many log formats; see, for example, Working with ROS Logs.

• Events defined over the spans you want to turn into episodes. See Create Events on Data. When you create an event, you can set a task metadata field on it to annotate that episode’s LeRobot task label — the action reads it directly, so this is the simplest way to label each episode. See Task specs in the contract reference for how the label is otherwise resolved.

• A collection of those events. The collection’s resource_type must be event. See Working with Collections.

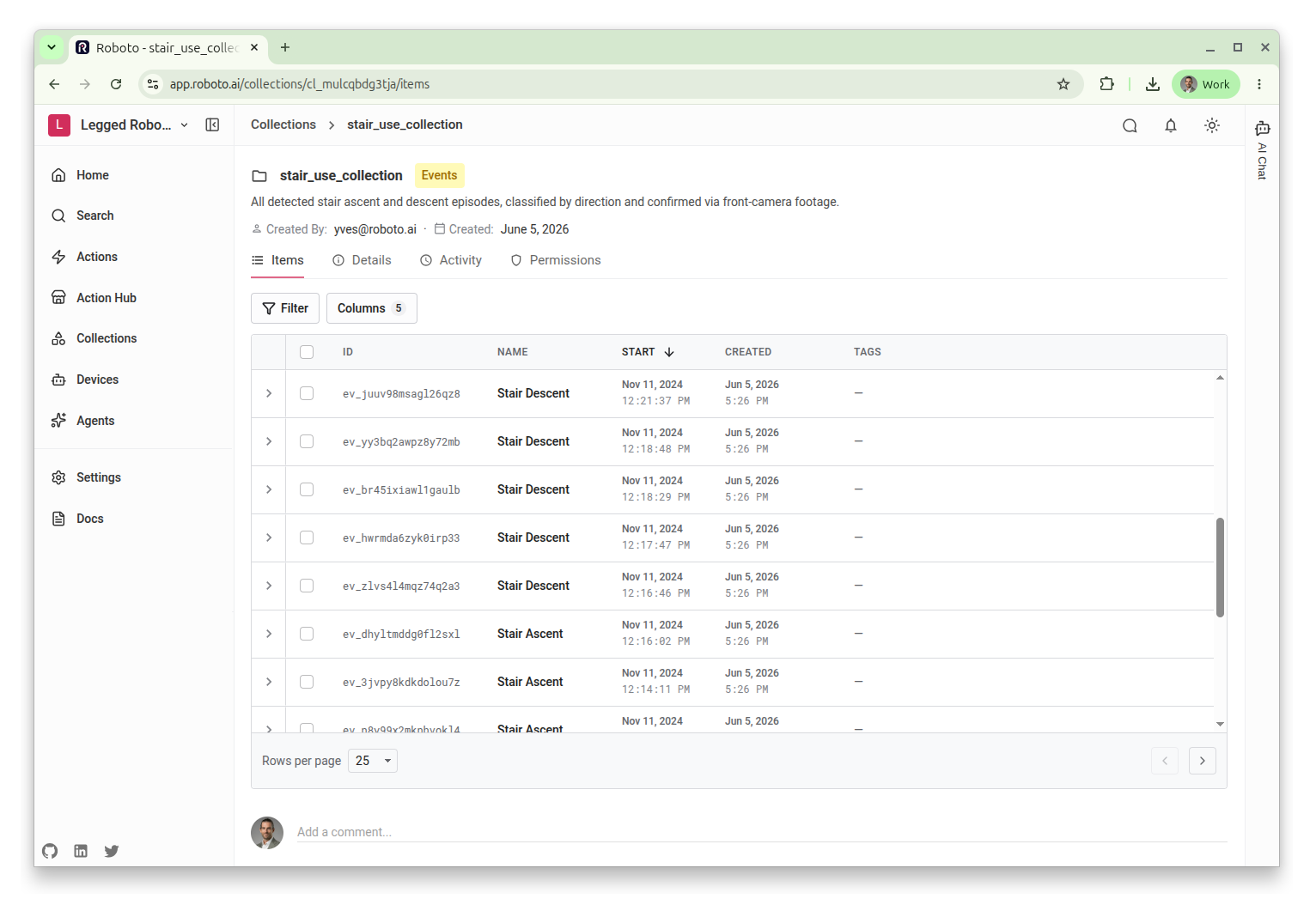

The collection defines the episodes of the output dataset, so it’s worth opening it first to confirm it holds exactly the events you intend to convert.

Inspect your topics

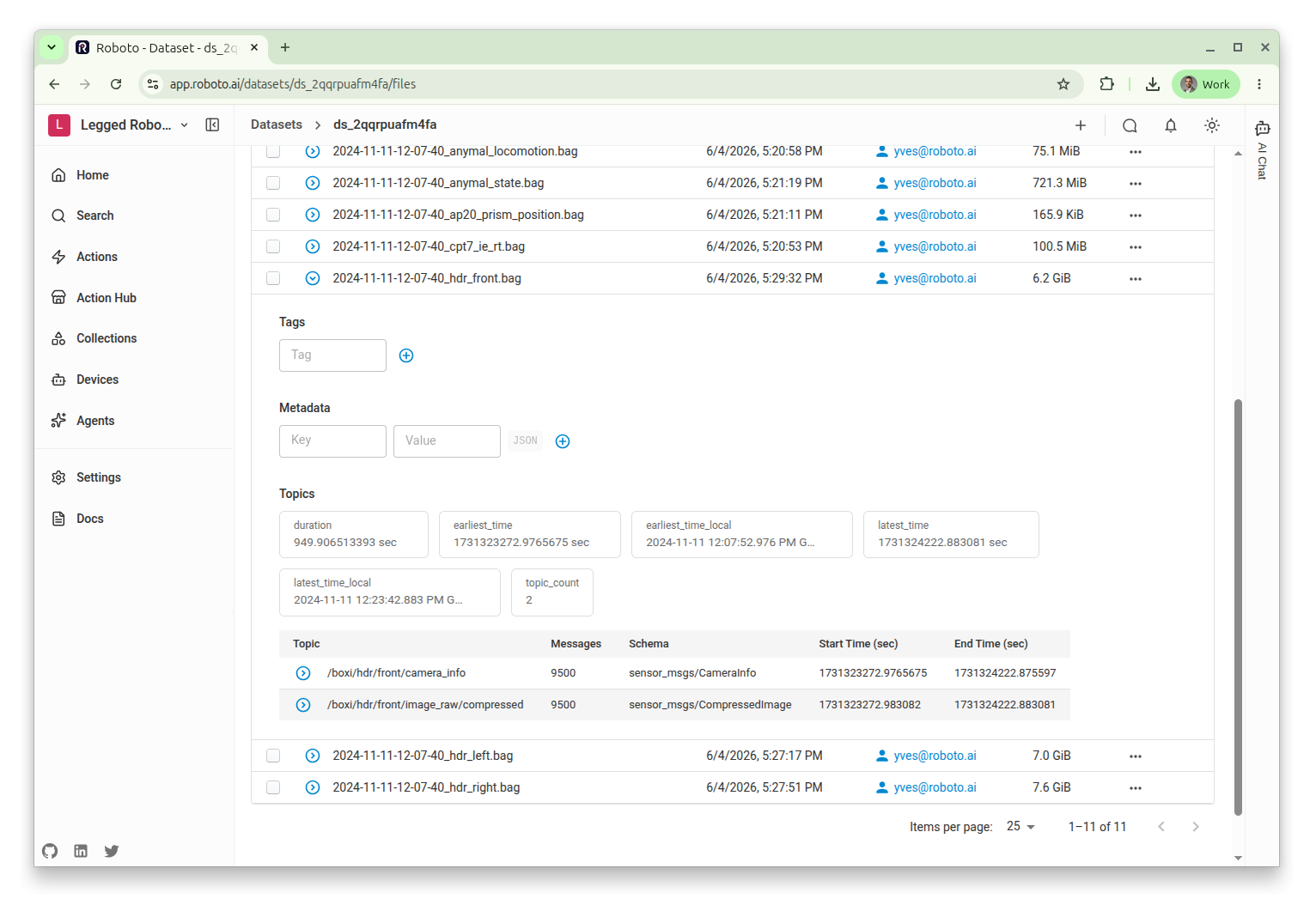

The contract maps topics to LeRobot features, so start by confirming the exact topic names, message types, and field names in your recordings. In the web UI, open the dataset, expand a file, and view its topics. Note the topic name and message type of each camera, joint-state, and command stream you want to include — and, for joint states, the joint names you want to keep.

Real recordings often have long, machine-generated topic and field names. That’s fine — the contract lets you map them to clean, ROS-independent feature names, so your LeRobot dataset never inherits your recording’s topic layout.

Author a contract

Create a file named contract.yaml. A minimal useful contract has one camera, one state observation, and one action stream. The example below reads a compressed camera image, a joint-state observation, and a joint-command action:

name: pick_place
version: 1
fps: 20
robot_type: my_arm

observations:
  # Camera -> a video feature. The image: block routes it to the video pipeline.
  - key: observation.images.exo
    topic: /camera/exo/image_raw/compressed
    type: sensor_msgs/msg/CompressedImage
    image:
      resize: [480, 640]        # [height, width]
    align: {method: nearest, tolerance_ms: 100}

  # Measured joint state -> a numeric observation feature.
  - key: observation.state
    topic: /robot/joint_states
    type: sensor_msgs/msg/JointState
    selector:
      names:         [joint_1, joint_2, joint_3]
      lerobot_names: [arm_1, arm_2, arm_3]
    align: {method: hold, tolerance_ms: 100}

actions:
  # Commanded joint targets -> the action feature.
  - key: action
    topic: /robot/joint_commands
    type: sensor_msgs/msg/JointState
    selector:
      names:         [joint_1, joint_2, joint_3]
      lerobot_names: [arm_1, arm_2, arm_3]

A few things to notice:

• fps sets the frame rate of the output timeline. Every stream is aligned onto one frame per 1/fps seconds.

• The camera spec has an image: block, so it becomes a video feature. The two joint streams have no image: block, so they become numeric features.

• lerobot_names gives your features clean, ROS-independent names — this is where the long topic and field names from your recording become tidy LeRobot feature names. It is optional but strongly recommended.

• align controls how each stream is sampled onto the timeline — nearest suits cameras, hold suits slow state signals.

Because the contract fully determines the output, converting a different robot or task is a matter of writing a different contract — the action itself never changes.

For every field, message type, alignment method, and transform available, see the Roboto to LeRobot Contract reference.

Upload the contract

The action reads the contract from the invocation dataset, where by default it looks for a file named contract.yaml anywhere in the dataset. Upload contract.yaml to any dataset you own; a small dataset dedicated to the contract keeps it separate from your raw recordings. If several files match, the action uses the first and logs a warning; set the contract parameter to choose explicitly.

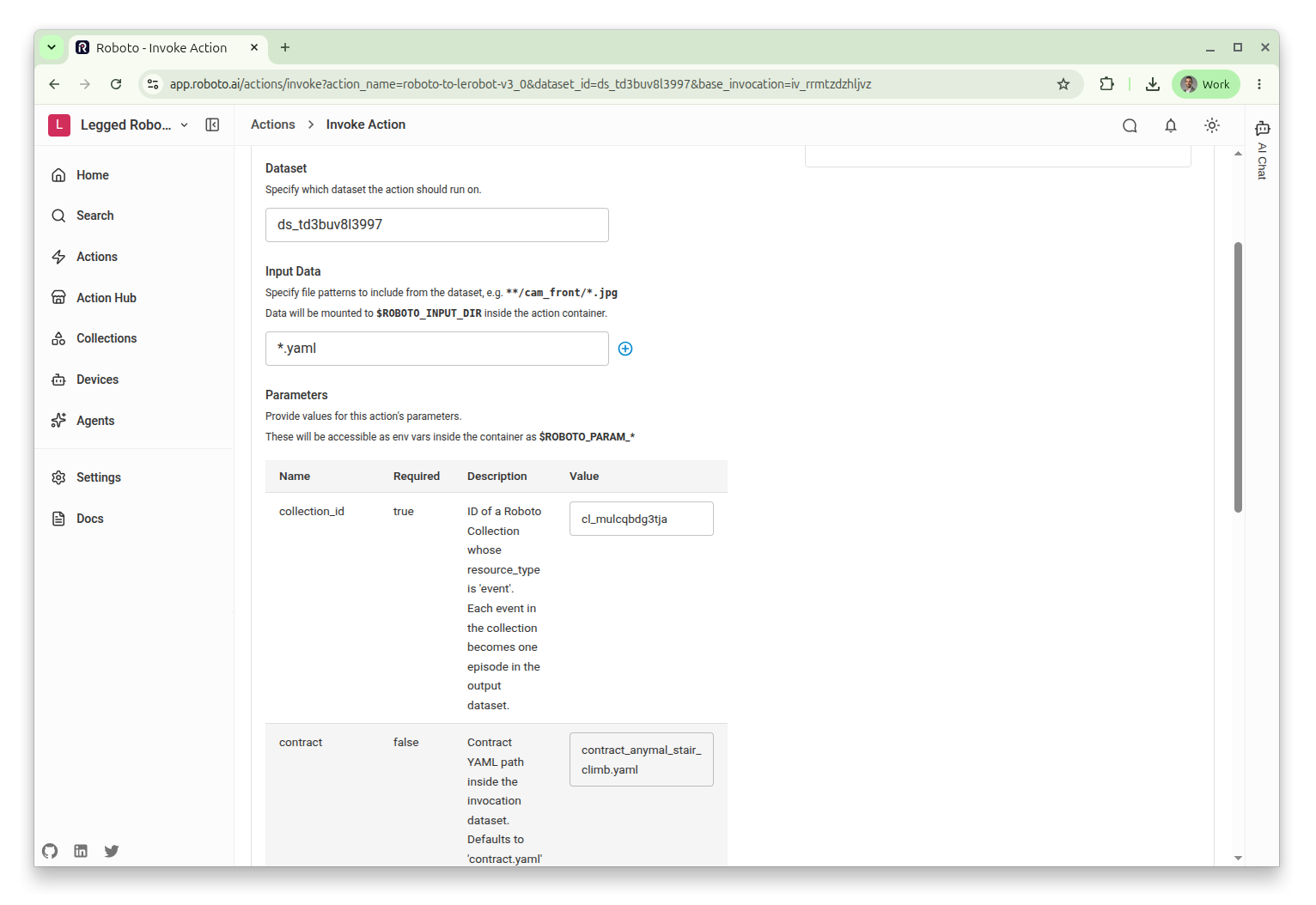

Invoke the action

Run the action against your invocation dataset, pointing it at your event collection:

1. Open the Action Hub from the left navigation bar and select roboto-to-lerobot-v3_0.

2. Click Invoke.

3. Choose your invocation dataset (the one holding contract.yaml).

4. Set the collection_id parameter to your event collection’s ID. Leave contract unset to use the contract.yaml in the dataset, or set it to a different path.

5. Click Invoke to start the run.

The remaining parameters tune sharding and encoding performance; their defaults are fine for a first run:

• shard_count (default 3) is the number of parallel writer shards, merged by stream copy at the end.

• pool_size is the worker count per shard. Left unset it auto-sizes to min(16, cpu_count / shard_count) — 5 on the default 16-vCPU compute. An explicit value is used as given and is not capped.

• encoder_threads (default 2) is the SVT-AV1 encoder’s parallelism per camera stream. Keep it at 2 or above; lower values risk the encoder’s frame queue overflowing and silently dropping frames.

To write the LeRobot 2.1 format instead, select roboto-to-lerobot-v2_1; the parameters are the same. Sharded writing merges shards with lerobot.datasets.aggregate, which exists only in lerobot 0.5.x, so the 2.1 variant (lerobot 0.3.3) ignores shard_count, falls back to a single writer, and logs a warning. It ignores encoder_threads too.

Note

If the invocation dataset holds no contract.yaml and you did not set the contract parameter, the run fails immediately. The run also fails if any topic named in the contract is missing from the recordings.

Check the output

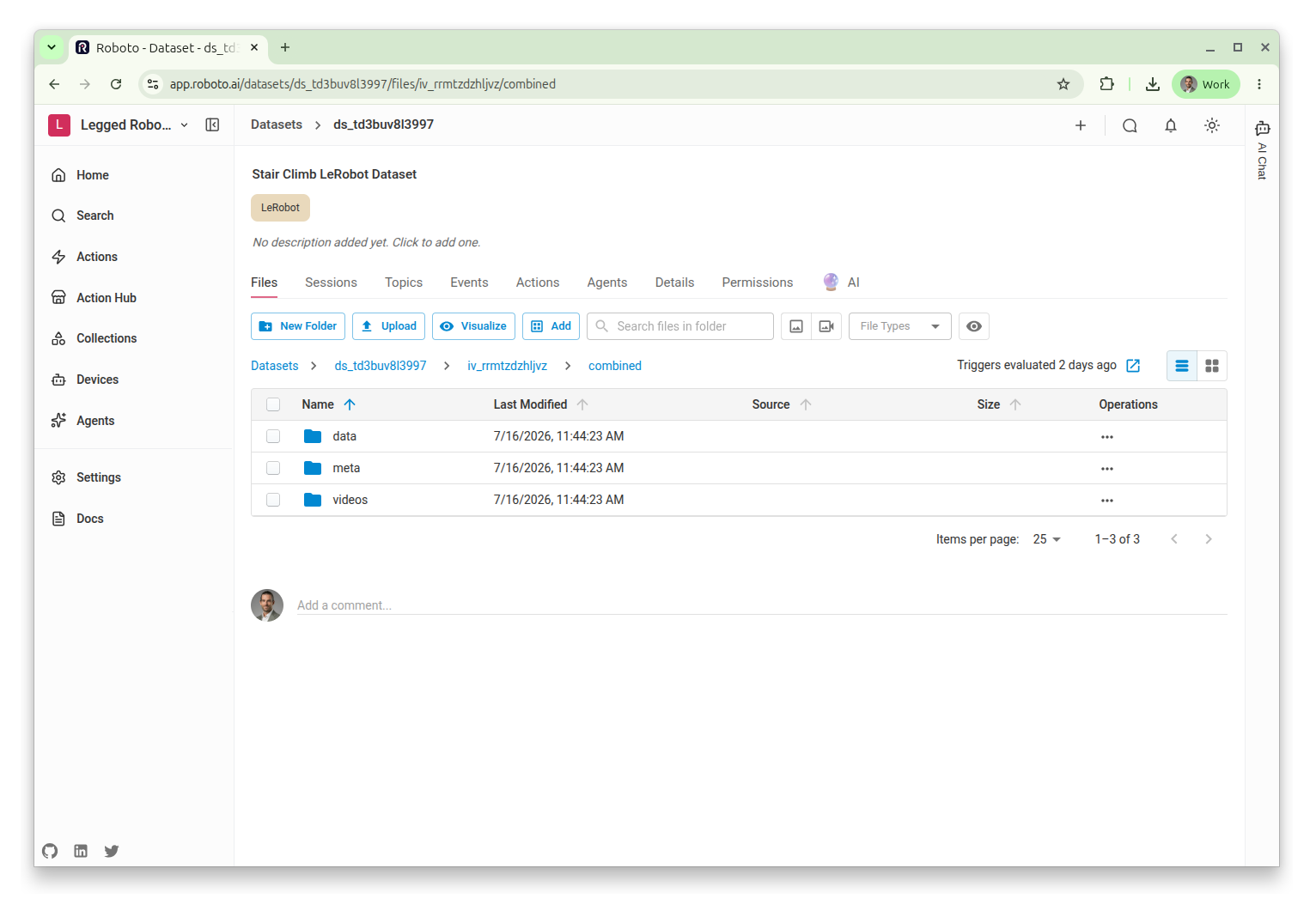

When the invocation completes, the action uploads its output back to the invocation dataset, under a folder named after the invocation ID. Inside it, combined/ holds the LeRobot dataset in the standard layout — a meta/ directory, per-episode data, and encoded videos for each camera feature — alongside manifest.json and an archived copy of the contract.

The manifest records each episode’s source event, the contract’s checksum, the collection version read at invocation time, and the lerobot version that wrote the dataset.

On roboto-to-lerobot-v3_0 with the default shard_count of 3, episodes are grouped by shard rather than chronologically, so episode order does not follow event start time; each episode’s original start_time_ns and end_time_ns are recorded in manifest.json under episode_to_event. The 2.1 variant always writes with a single writer, so its episodes stay in chronological order.

Use your dataset

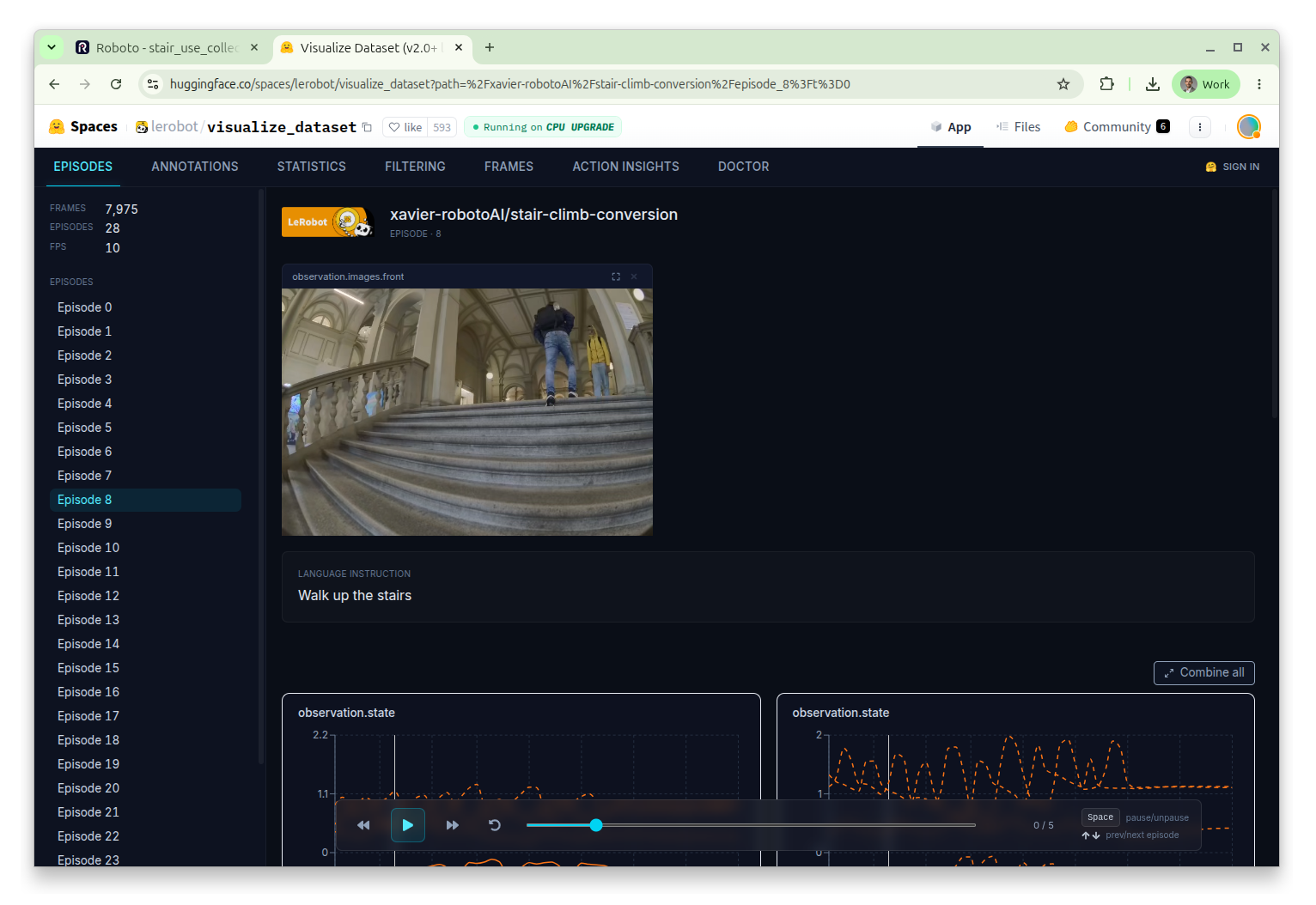

The output is a standard LeRobot dataset, so anything that reads LeRobot works on it. A common next step is to publish it to the Hugging Face Hub, where the built-in LeRobot dataset visualizer lets you spot-check that camera frames, states, and actions line up as expected. Confirm that:

• The feature keys and lerobot_names match what you declared.

• The camera video plays in sync with the state and action signals.

• Each episode’s task label is what you expect (see Task specs in the contract reference for how the label is chosen).

Conclusion

You have converted a collection of events into a LeRobot dataset driven by a single contract. From here you can iterate on the contract — adding cameras, selecting more joints, or applying transforms — and re-invoke the action to regenerate the dataset. See the Roboto to LeRobot Contract reference for the full set of options.
